RAM MOUNTS Universal Marine Electronic Mount RAM-D-115-C with Short Arm for 9" to 12" Fishfinder Gimbal Brackets - Perfect for Boating and Fishing Adventures

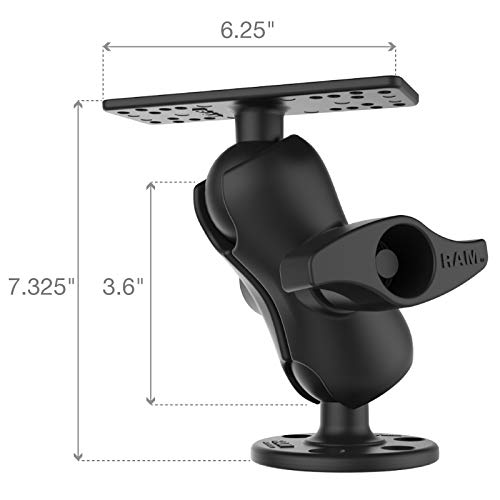

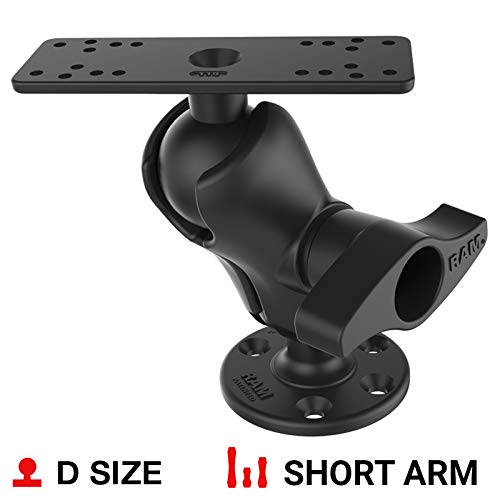

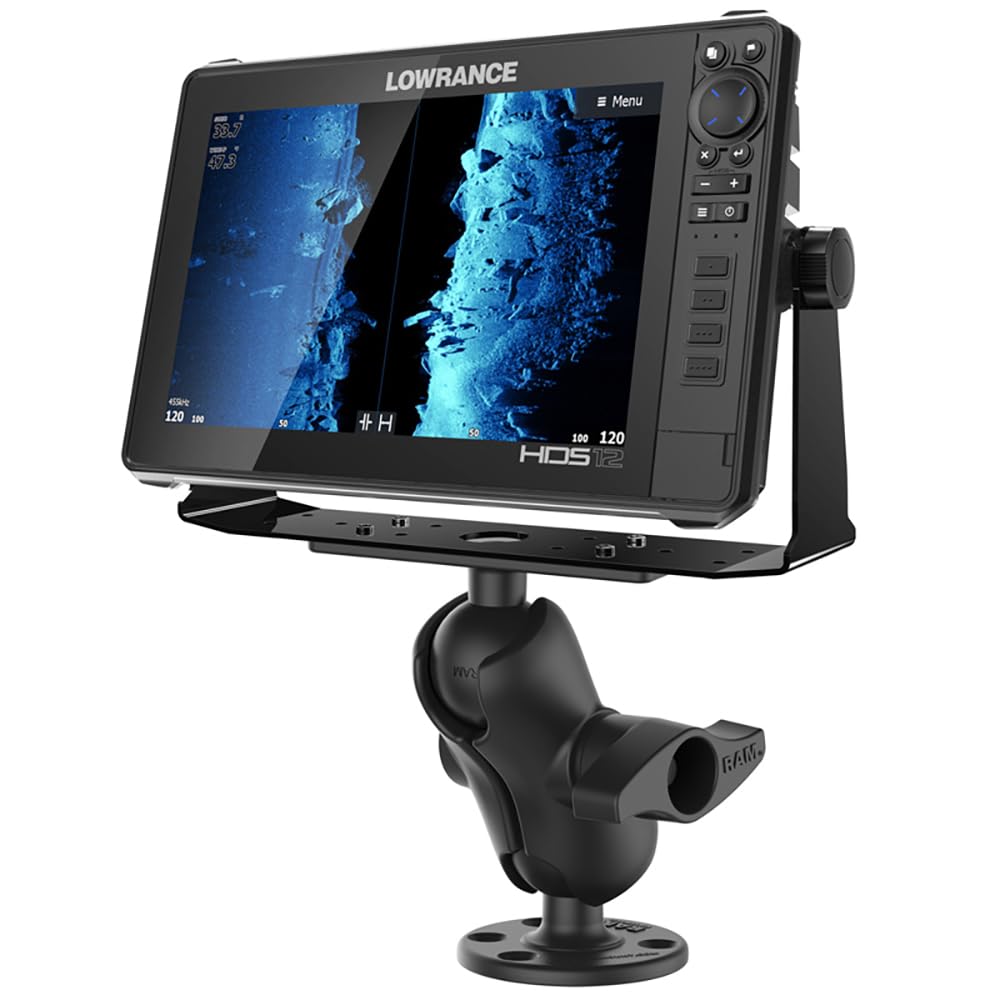

The RAM-D-115-C consists of a base with a 2.25” diameter D size ball, a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more. Technical Specifications Part Number RAM-D-115-C Product Dimensions Overall Height: 7.325" Socket-to-Socket Length 3.6" Plate Size Top Plate: 6.25" x 2", Bottom Plate: 3.68" Diameter Ball/Socket Size D Size (2.25") Weight Capacity Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs Materials Marine-grade aluminum Packaging Type Retail Box Weight 3.2 lbs. Additional Information The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
